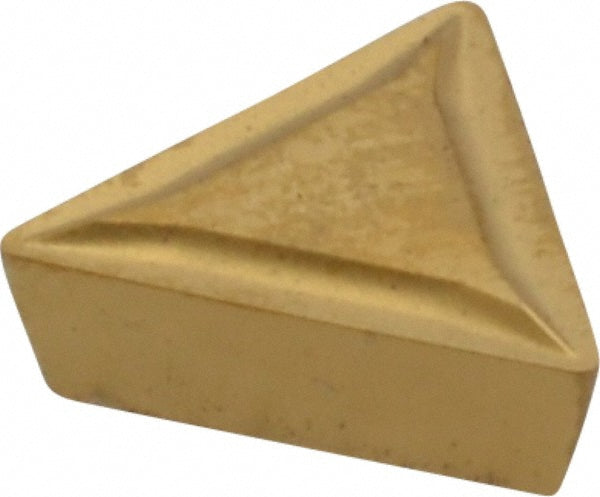

T - Triangle 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162782

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade KC850, TiC - Kennametal 1162782

MFR# 1162782ISO/ANSI# TPMR110304Series KENDEX

$20.60List $25.14 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1162782 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeTPMR221
Ansi size code221
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle60
Industry standard numberTPMR221
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPMR
Insert thickness in1/8
Iso insert codeTPMR110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number1162782
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4331
Wiper edgeNo
