Kennametal

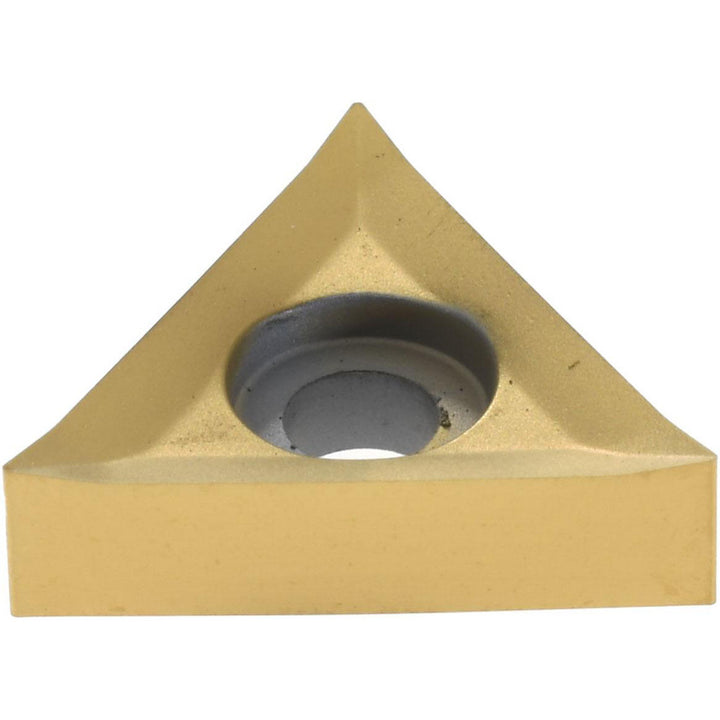

T - Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1162887
MFR# 1162887ISO/ANSI# T110301Series Screw-On
$37.02List $45.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1162887 is a carbide indexable insert, grade KC730, TiN coated.
Specifications
Ansi insert codeT220
Ansi size code220
Chip breakerF
Coating finishTiN
Coating processPVD
Corner radius0.0040
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.0945
Included angle60
Industry standard numberVNGA432T0820
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code220
Insert styleT
Insert thickness in1/8
Iso insert codeT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog number1162887
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
