Kennametal

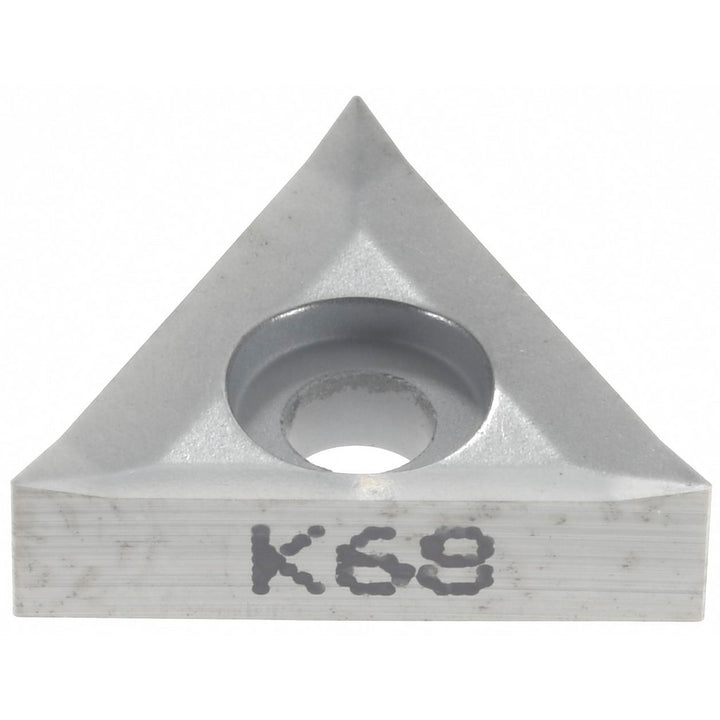

T - Triangle 1/4" IC Carbide Insert, Grade K68 - Kennametal 1163034
MFR# 1163034ISO/ANSI# T110301Series Screw-On
$31.18List $38.05
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1163034 is a carbide indexable insert, grade K68.
Specifications
Ansi insert codeT220
Ansi size code220
Chip breakerF
Corner radius0.0040
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.0945
Included angle60
Industry standard numberC2FIX150510LMN
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code220
Insert styleT
Insert thickness in1/8
Iso insert codeT110301
Iso size code110301
Length range0.4000 - 0.5000
Manufacturers catalog number1163034
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Side clearanceNegative
