Kennametal

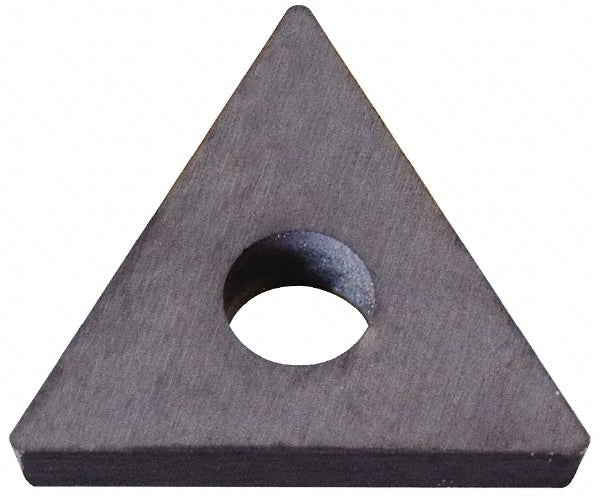

T - Triangle 1/4" IC Carbide Insert, Grade K68 - Kennametal 1163038
MFR# 1163038ISO/ANSI# TP1100208Series Screw-On
$24.29List $29.65
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1163038 is a carbide indexable insert, grade K68.
Specifications
Ansi insert codeTP42
Ansi size code42
Chip breaker operationNo Chip Breaker
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1102
Included angle60
Industry standard numberTCMT3252MF
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code42
Insert styleTP
Insert thickness in3/32
Iso insert codeTP1100208
Iso size code1100208
Length range0.4000 - 0.5000
Manufacturers catalog number1163038
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
