Kennametal

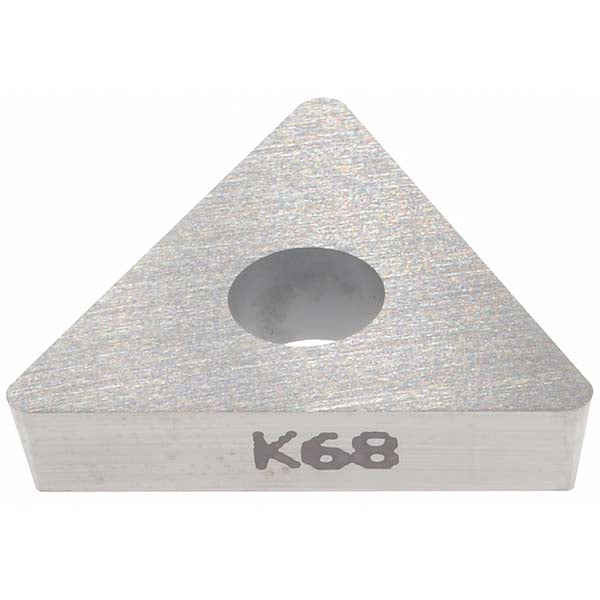

C8FIX150605RRN Carbide Insert, Grade K68 - Kennametal 1163040
MFR# 1163040ISO/ANSI# TP160308Series Screw-On
$29.11List $35.53
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1163040 is a C8FIX150605RRN carbide indexable insert, grade K68.
Specifications
Ansi insert codeTP62
Ansi size code62
Chip breaker operationNo Chip Breaker
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1732
Included angle60
Industry standard numberCCGT432HP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCarbide
Insert shapeT - Triangle
Insert size code62
Insert styleTP
Insert thickness in1/8
Iso codeC8FIX150605RRN
Iso insert codeTP160308
Iso size code160308
Length range0.6000 - 0.6500
Manufacturers catalog number1163040
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
RakePositive
Relief angle11
Side clearancePositive
