Kennametal

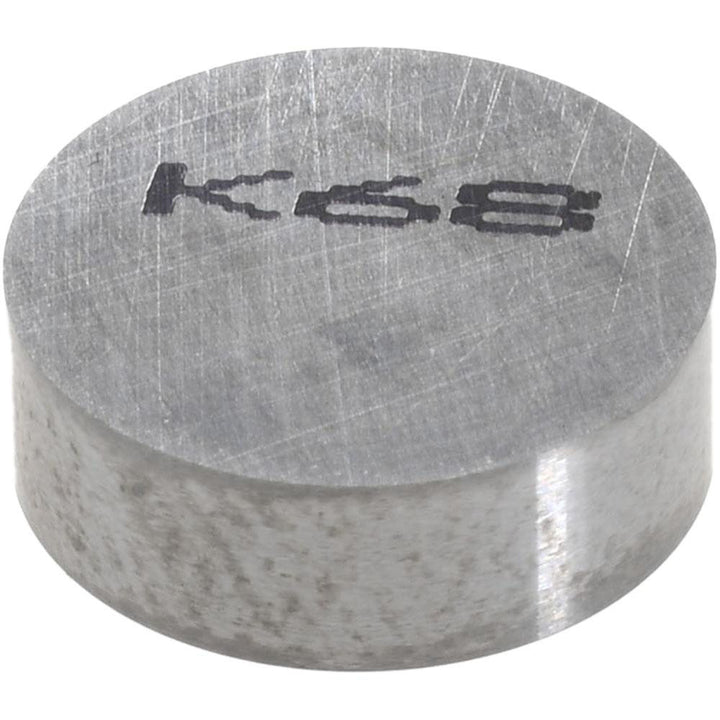

R - Round 3/8" IC Carbide Insert, Grade K68 - Kennametal 1163044
MFR# 1163044ISO/ANSI# RNG090300Series KENDEX
$16.55List $20.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeK68
MaterialCarbide
Description
The Kennametal 1163044 is a carbide indexable insert, grade K68. Suited for superalloys & titanium.
Specifications
Ansi insert codeRNG32
Ansi size code32
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle360
Industry standard numberRNG32
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert shapeR - Round
Insert size code32
Insert styleRNG
Insert thickness in1/8
Iso insert codeRNG090300
Iso size code090300
Length range0.3000 - 0.4000
Manufacturers catalog number1163044
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
