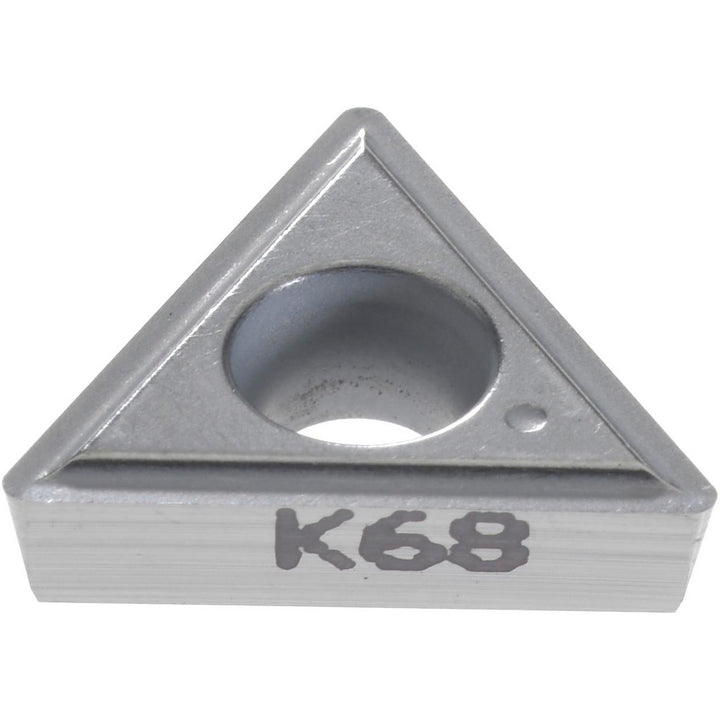

T - Triangle 1/4" IC Carbide Insert, Grade K68 - Kennametal 1163049

Kennametal

T - Triangle 1/4" IC Carbide Insert, Grade K68 - Kennametal 1163049

MFR# 1163049ISO/ANSI# TPGM110204Series Screw-On

$26.28List $32.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK68
MaterialCarbide

Description

The Kennametal 1163049 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeTPGM2151
Ansi size code2151
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Hole diameter0.1142
Included angle60
Industry standard numberTPGM2151
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code2151
Insert styleTPGM
Insert thickness in3/32
Iso insert codeTPGM110204
Iso size code110204
Length range0.4000 - 0.5000
Manufacturers catalog number1163049
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
