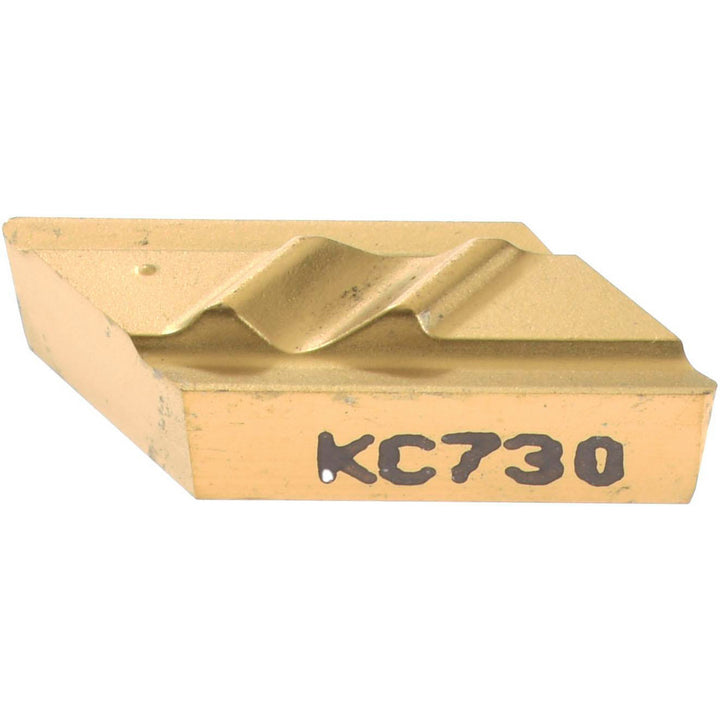

KCGX110304L15 Carbide Insert, Grade KC730, TiN - Kennametal 1163217

Kennametal

KCGX110304L15 Carbide Insert, Grade KC730, TiN - Kennametal 1163217

MFR# 1163217ISO/ANSI# KCGX110304L15Series Top Not

$26.06List $31.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1163217 is a KCGX110304L15 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code51
Insert styleNPL
Iso codeKCGX110304L15
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.1250
Msc manufacturer numberNPL51
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL51; KCGX110304L15
Thickness in1/8
Width in1/4
