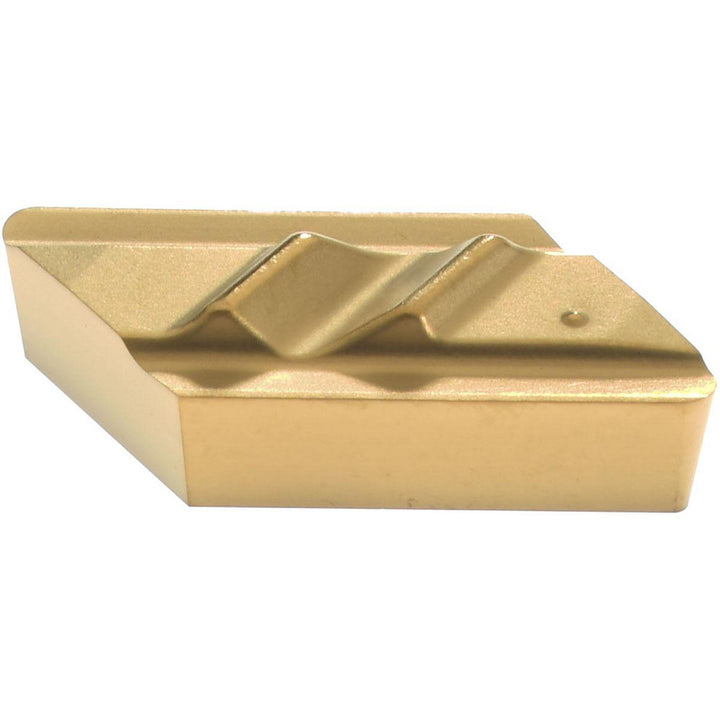

KCGX110308L15 Carbide Insert, Grade KC730, TiN - Kennametal 1163218

Kennametal

KCGX110308L15 Carbide Insert, Grade KC730, TiN - Kennametal 1163218

MFR# 1163218ISO/ANSI# KCGX110308L15Series Top Not

$26.06List $31.81 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1163218 is a KCGX110308L15 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishTiN
Coating processPVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert size code52
Insert styleNPL
Iso codeKCGX110308L15
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.1257
Msc manufacturer numberNPL52
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3770
StandardsNPL52; KCGX110308L15
Thickness in1/8
Width in1/4
