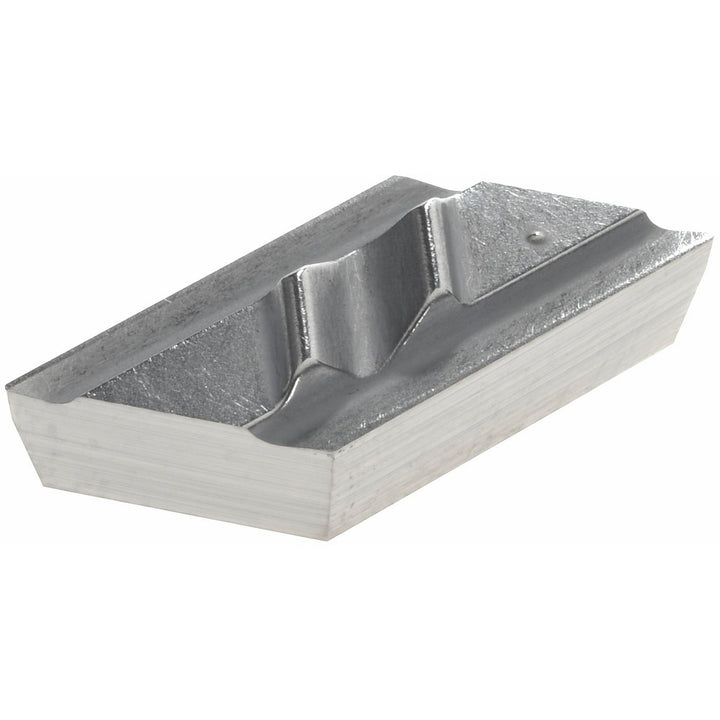

KCGX110301L15 Carbide Insert, Grade K313, WC-Co - Kennametal 1163283
MFR# 1163283ISO/ANSI# KCGX110301L15Series Top Not
$20.48List $25.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeK313
MaterialCarbide
CoatingWC-Co
Description
The Kennametal 1163283 is a KCGX110301L15 carbide indexable insert, grade K313, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0050
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length in3/8
Insert materialCarbide
Insert size code505
Insert styleNPL
Iso codeKCGX110301L15
Manufacturer gradeK313
Material gradeFine Grain
Maximum depth of cut0.1250
Msc manufacturer numberNPL505
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3750
StandardsNPL505; KCGX110301L15
Thickness in1/8
Width in1/4
