Kennametal

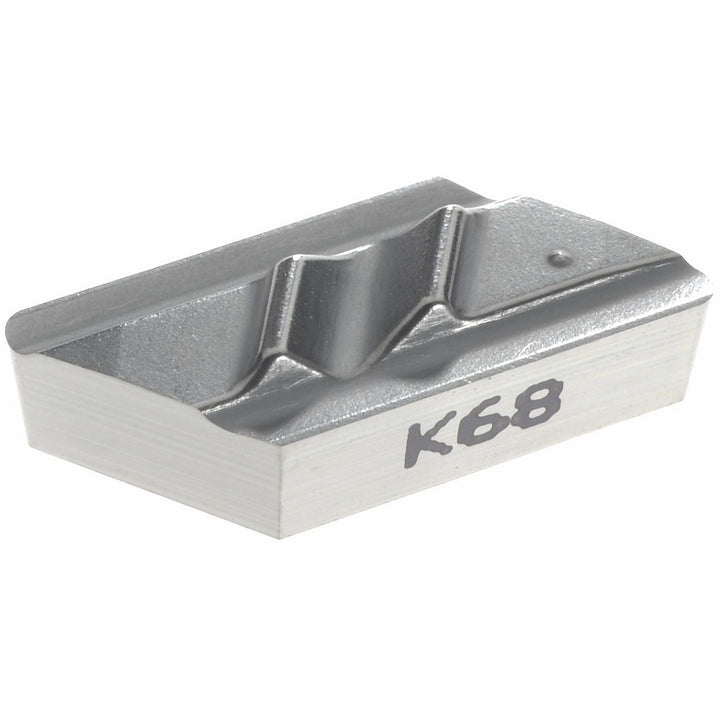

KCGX110308L15 Carbide Insert, Grade K68, WC-Co - Kennametal 1163316
MFR# 1163316ISO/ANSI# KCGX110308L15Series Top Not
$20.48List $25.00
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeK68
MaterialCarbide
CoatingWC-Co
Description
The Kennametal 1163316 is a KCGX110308L15 carbide indexable insert, grade K68, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert size code52
Insert styleNPL
Iso codeKCGX110308L15
Manufacturer gradeK68
Material gradeFine Grain
Maximum depth of cut0.1257
Msc manufacturer numberNPL52
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3770
StandardsNPL52; KCGX110308L15
Thickness in1/8
Width in1/4
