Kennametal

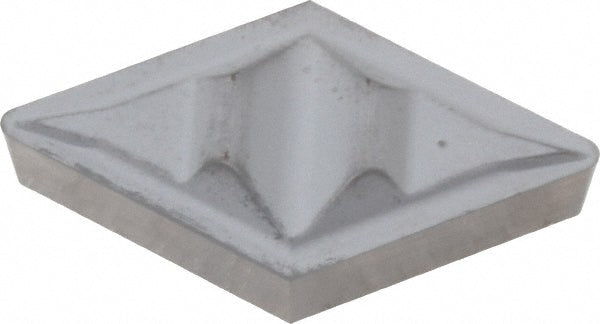

DCGR150408 Carbide Insert, Grade K68, WC-Co - Kennametal 1163341
MFR# 1163341ISO/ANSI# DCGR150408Series Top Not
$31.17List $38.04
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeK68
MaterialCarbide
CoatingWC-Co
Description
The Kennametal 1163341 is a DCGR150408 carbide indexable insert, grade K68, WC-Co coated. Suited for non-ferrous metal, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating finishWC-Co
Coating processUncoated
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code432
Insert styleDPGR
Iso codeDCGR150408
Manufacturer gradeK68
Material gradeFine Grain
Maximum depth of cut0.2035
Msc manufacturer numberDPGR432
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR432; DCGR150408
Thickness in3/16
Width in1/2
