Kennametal

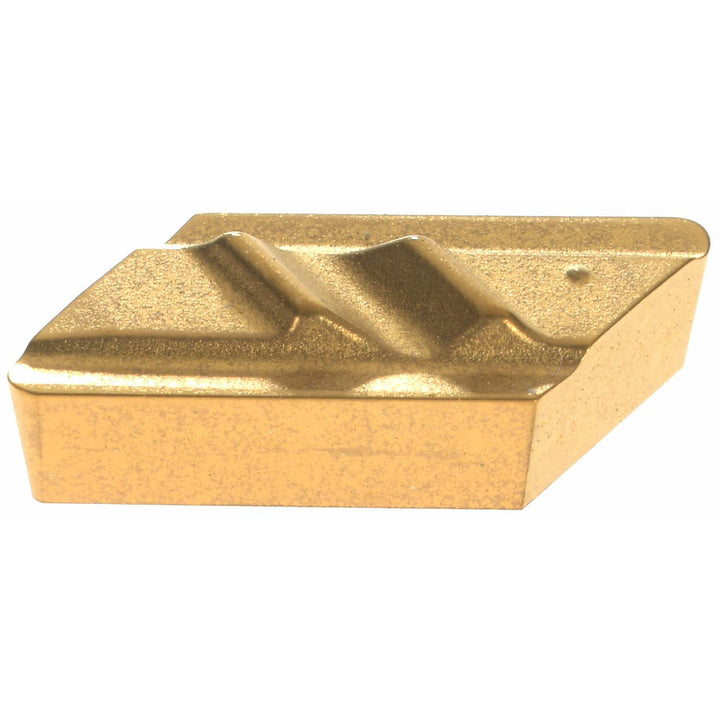

KCGX110308R15 Carbide Insert, Grade KC850 - Kennametal 1163377
MFR# 1163377ISO/ANSI# KCGX110308R15Series Top Not
$26.06List $31.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description
The Kennametal 1163377 is a KCGX110308R15 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handRight Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert size code52
Insert styleNPR
Iso codeKCGX110308R15
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.1257
Msc manufacturer numberNPR52
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.3770
StandardsNPR52; KCGX110308R15
Thickness in1/8
Width in1/4
