Kennametal

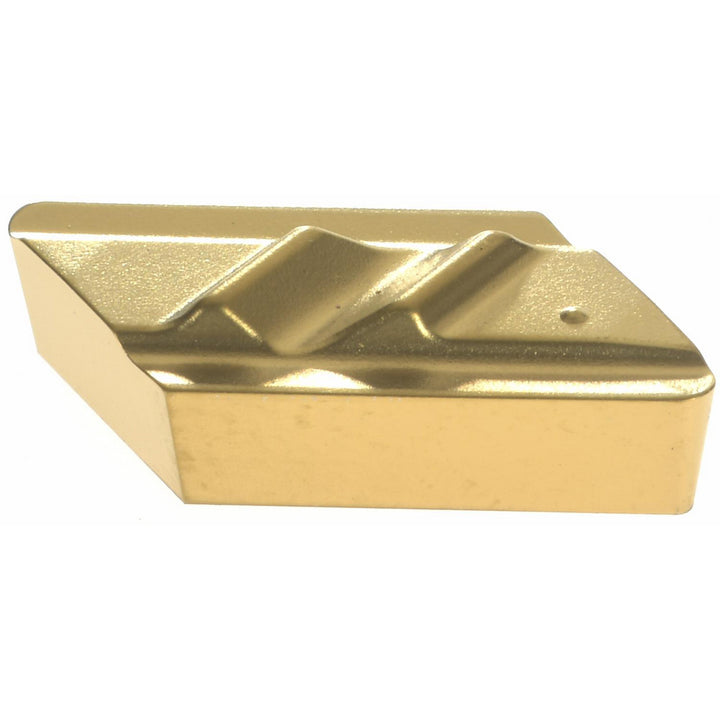

KCGX110308L15 Carbide Insert, Grade KC850 - Kennametal 1163380
MFR# 1163380ISO/ANSI# KCGX110308L15Series Top Not
$26.06List $31.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description
The Kennametal 1163380 is a KCGX110308L15 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert height0.1250
Insert holding methodScrew
Insert length0.3770
Insert materialCarbide
Insert size code52
Insert styleNPL
Iso codeKCGX110308L15
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.1257
Msc manufacturer numberNPL52
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Relief angle0
ShapeParallelogram
Side length0.3770
StandardsNPL52; KCGX110308L15
Thickness in1/8
Width in1/4
