Kennametal

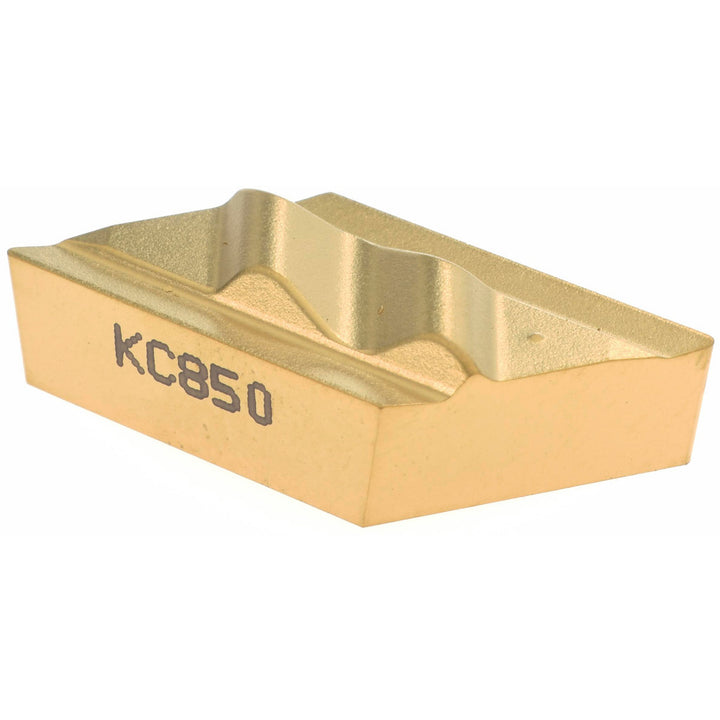

KNGX150404R20 Carbide Insert, Grade KC850 - Kennametal 1163381
MFR# 1163381ISO/ANSI# KNGX150404R20Series Top Not
$33.21List $40.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKC850
MaterialCarbide
Description
The Kennametal 1163381 is a KNGX150404R20 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle0.3730
Insert handRight Hand
Insert height0.1875
Insert holding methodScrew
Insert length in1/2
Insert materialCarbide
Insert size code131F
Insert styleNPR
Iso codeKNGX150404R20
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.1663
Msc manufacturer numberNPR131F
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakeNegative
Rake angle10
Relief angle0
ShapeParallelogram
Side length0.4990
StandardsNPR131F; KNGX150404R20
Thickness in3/16
Width0.3730
