Kennametal

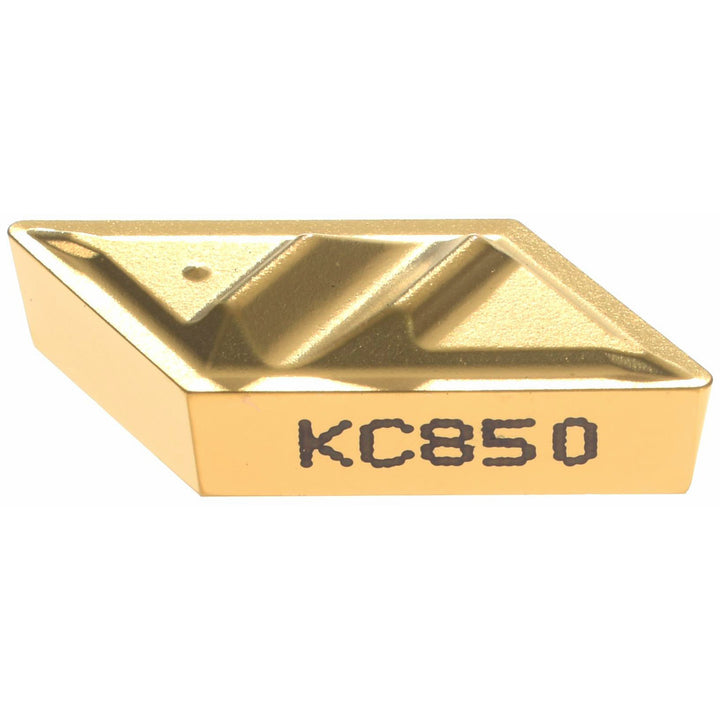

KCGR110304L08 Carbide Insert, Grade KC850 - Kennametal 1163404
MFR# 1163404ISO/ANSI# KCGR110304L08Series Top Not
$26.18List $31.96
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
GradeKC850
MaterialCarbide
Description
The Kennametal 1163404 is a KCGR110304L08 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0156
Hole diameter0.0000
Included angle55
Inscribed circle in1/4
Insert handLeft Hand
Insert height0.1250
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert size code51L
Insert styleNPGR
Iso codeKCGR110304L08
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.1250
Msc manufacturer numberNPGR51L
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle10
Relief angle8
ShapeParallelogram
Side length0.3750
StandardsNPGR51L; KCGR110304L08
Thickness in1/8
Width in1/4
