Kennametal

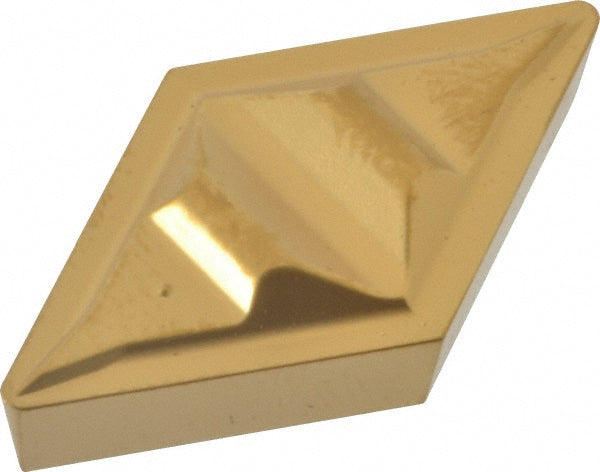

DCGR150408 Carbide Insert, Grade KC850 - Kennametal 1163407
MFR# 1163407ISO/ANSI# DCGR150408Series Top Not
$37.04List $45.21
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeKC850
MaterialCarbide
Description
The Kennametal 1163407 is a DCGR150408 carbide indexable insert, grade KC850. Suited for steel, stainless steel.
Specifications
ApplicationsProfiling; Turning
ChipbreakerCommon
Coating processCVD
Corner radius0.0312
Hole diameter0.0000
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert height0.1875
Insert holding methodClamp
Insert length0.6104
Insert materialCarbide
Insert size code432
Insert styleDPGR
Iso codeDCGR150408
Manufacturer gradeKC850
Material gradeP30; P40; M30; M40
Maximum depth of cut0.2035
Msc manufacturer numberDPGR432
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle8
ShapeParallelogram
Side length0.6104
StandardsDPGR432; DCGR150408
Thickness in3/16
Width in1/2
