Kennametal

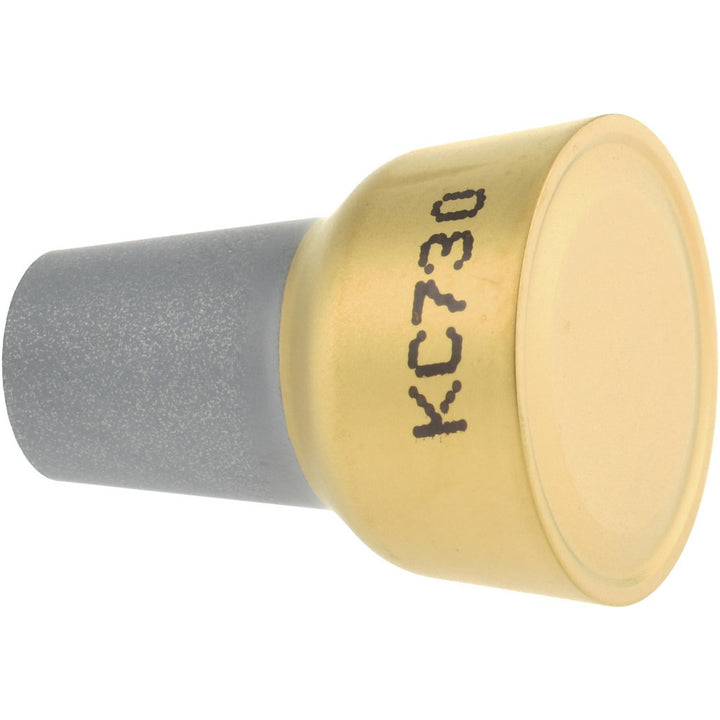

RCMK120800 Carbide Insert, Grade KC730, TiN - Kennametal 1163524
MFR# 1163524ISO/ANSI# RCMK120800Series K-LOCK
$29.00List $35.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1163524 is a RCMK120800 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiN
Coating processPVD
Corner radius0.2500
Hole diameter0.0000
Included angle360
Inscribed circle in1/2
Insert handNeutral
Insert height0.6540
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert size code46
Insert styleRCMK
Iso codeRCMK120800
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.2500
Msc manufacturer numberRCMK46
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle5
ShapeRound
Side length0.5000
StandardsRCMK46; RCMK120800
Thickness0.6540
Width in1/2
