Kennametal

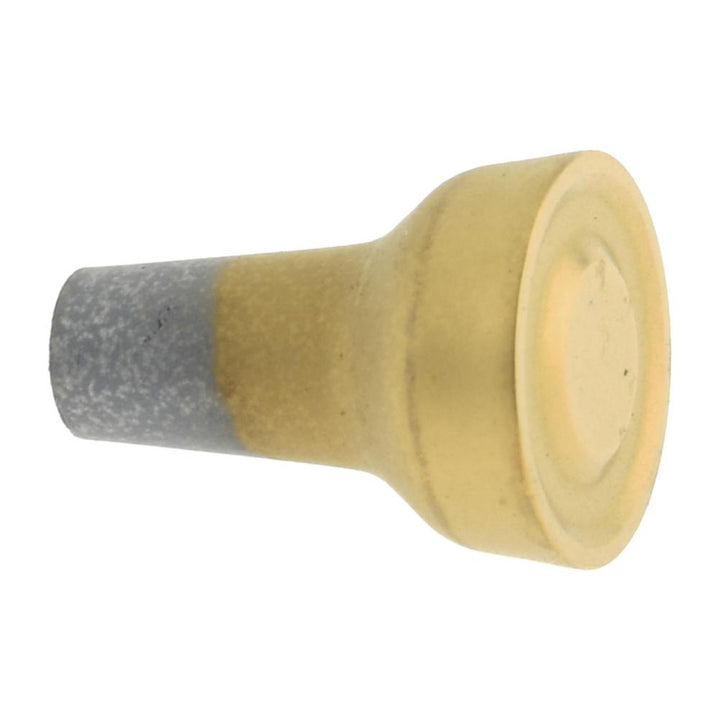

RCMK040300 Carbide Insert, Grade KC730, TiN - Kennametal 1163525
MFR# 1163525ISO/ANSI# RCMK040300Series K-LOCK
$15.75List $19.23
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
GradeKC730
MaterialCarbide
CoatingTiN
Description
The Kennametal 1163525 is a RCMK040300 carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
ApplicationsProfiling; Turning
ChipbreakerNone
Coating finishTiN
Coating processPVD
Corner radius0.0938
Hole diameter0.0000
Included angle360
Inscribed circle in3/16
Insert handNeutral
Insert height0.2510
Insert holding methodClamp; Pin
Insert length in3/16
Insert materialCarbide
Insert size code152
Insert styleRCMK
Iso codeRCMK040300
Manufacturer gradeKC730
Material gradeP10; P20; M10; M20; S10; S20
Maximum depth of cut0.0938
Msc manufacturer numberRCMK152
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle7
Relief angle5
ShapeRound
Side length0.1875
StandardsRCMK152; RCMK040300
Thickness in5/16
Width in3/16
