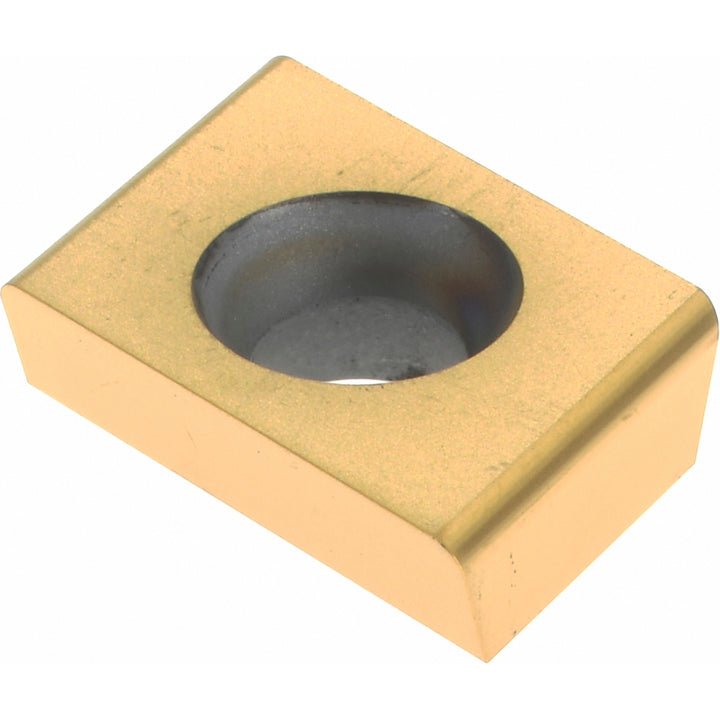

CDE322R05 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1180889

Kennametal

CDE322R05 Solid Carbide Insert, Grade KC725M, TiN - Kennametal 1180889

MFR# 1180889ISO/ANSI# CDE322R05Cat# CDE322R05Series CDE

$35.44List $43.25 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeParallelogram
GradeKC725M
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 1180889 is a CDE322R05 solid carbide indexable insert, grade KC725M, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Coating finishTiN
Coating processPVD
Corner radius0.0299
Hole diameter0.1701
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size32
Insert size code322
Insert styleCDE
Iso codeCDE322R05
Length0.5110
Length range0.5000 to 0.6000
Manufacturers catalog numberCDE322R05
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Single or double sided insertSingle
Thickness0.1500
Thickness range0.1500 to 0.1750
Width in3/8
