Kennametal

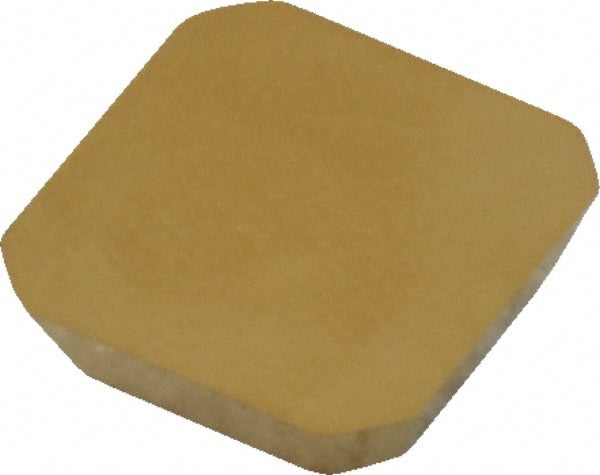

SEKN1203AFFNLN Solid Carbide Insert, Grade KC730, TiN - Kennametal 1181163
MFR# 1181163ISO/ANSI# SEKN1203AFFNLNCat# SEKN1203AFFNLNSeries SEKN
$32.91List $40.17
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC730
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1181163 is a SEKN1203AFFNLN solid carbide indexable insert, grade KC730, TiN coated.
Specifications
Chip breakerLN
Coating finishTiN
Coating processPVD
Corner radius0.0390
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size42
Insert size code42
Insert styleSEKN
Iso codeSEKN1203AFFNLN
Manufacturers catalog numberSEKN1203AFFNLN
Manufacturer gradeKC730
Material gradeC2; C3; C4
Rake angle0
Relief angle20.00
Thickness in1/8
Thickness range0.1250 to 0.1500
