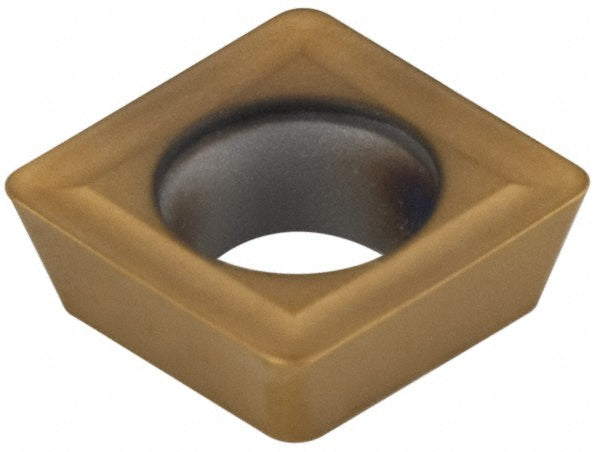

SDMT090308 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1181469

Kennametal

SDMT090308 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1181469

MFR# 1181469ISO/ANSI# SDMT090308Cat# SDMT090308Series SDMT

$34.23List $41.78 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1181469 is a SDMT090308 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeSDMT322
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilitySD09
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size3
Insert size code322
Insert styleSDMT
Iso codeSDMT090308
Length in3/8
Length range0.3200 to 0.4000
Manufacturers catalog numberSDMT090308
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
