Kennametal

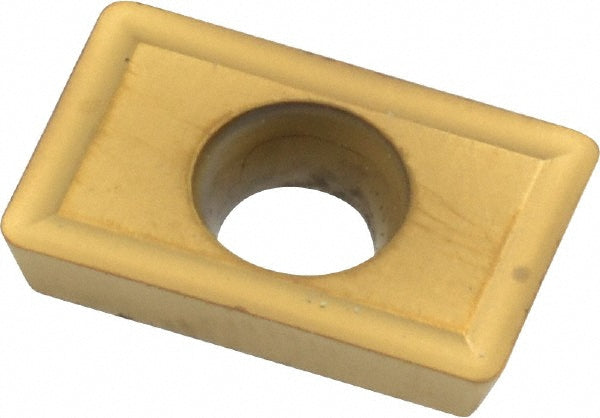

XDMT150308R Solid Carbide Insert, Grade KC730, TiN - Kennametal 1181596
MFR# 1181596ISO/ANSI# XDMT150308RCat# XDMT150308RSeries XDMT
$42.56List $51.95
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeParallelogram
GradeKC730
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1181596 is a XDMT150308R solid carbide indexable insert, grade KC730, TiN coated.
Specifications
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle degree88
Inscribed circle in1/2
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size15
Insert size code150308
Insert styleXDMT
Iso codeXDMT150308R
Length0.5906
Length range0.5000 to 0.6000
Manufacturers catalog numberXDMT150308R
Manufacturer gradeKC730
Material gradeC2; C3; C4
Relief angle15.00
Single or double sided insertSingle
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in3/8
