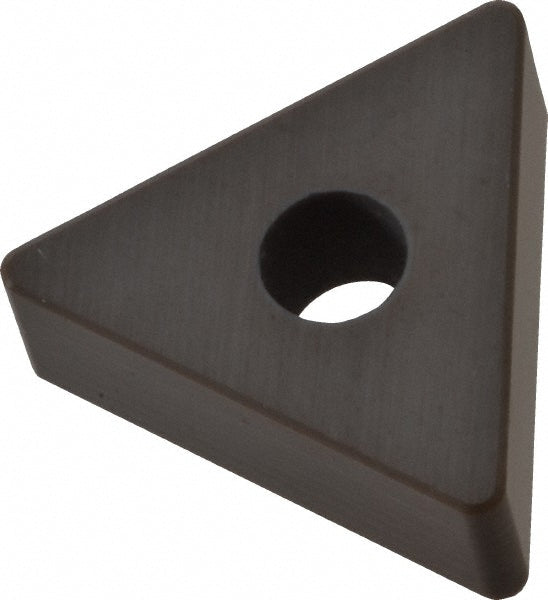

T - Triangle 3/8" IC Ceramic Insert, Grade KY3500 - Kennametal 1181984
MFR# 1181984ISO/ANSI# TNGA160408Series KENLOC
$26.70List $32.02
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKY3500
MaterialCeramic
Description
The Kennametal 1181984 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeTNGA332
Ansi size code332
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle60
Industry standard numberTNGA332T0820
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6496
Insert materialCeramic
Insert shapeT - Triangle
Insert size code332
Insert styleTNGA
Insert thickness in3/16
Iso insert codeTNGA160408
Iso size code160408
Length range0.6000 - 0.6500
Manufacturers catalog number1181984
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width0.6496
Wiper edgeNo
