Kennametal

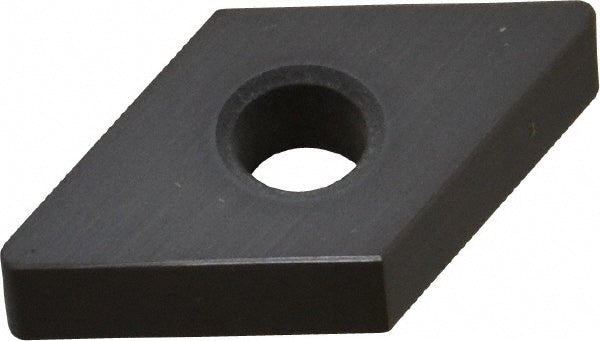

D - Diamond (Rhombic) 55-Deg 1/2" IC Ceramic Insert, Grade KY3500 - Kennametal 1182002
MFR# 1182002ISO/ANSI# DNGA150408Series KENLOC
$34.93List $41.88
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKY3500
MaterialCeramic
Description
The Kennametal 1182002 is a ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle55
Industry standard numberDNGA432T0820
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCeramic
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso insert codeDNGA150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number1182002
Manufacturer gradeKY3500
Material gradeSilicon Nitride
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
