Kennametal

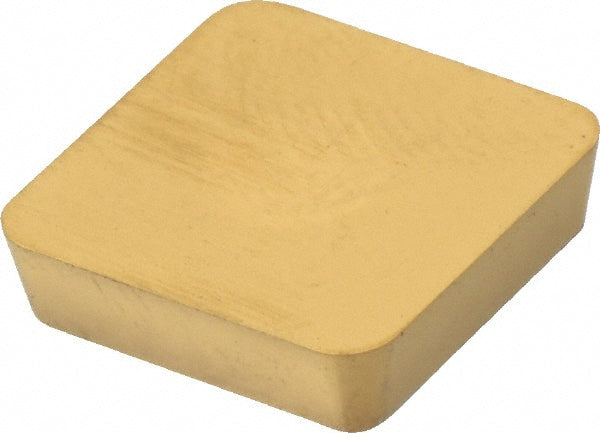

SPGN120316 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1182695
MFR# 1182695ISO/ANSI# SPGN120316Cat# SPGN120316Series SPGN
$34.88List $42.58
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 1182695 is a SPGN120316 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeSPG424
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting edge styleHoned
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code424
Insert styleSPGN
Iso codeSPGN120316
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSPGN120316
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Maximum depth of cut0.7500
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
