Kennametal

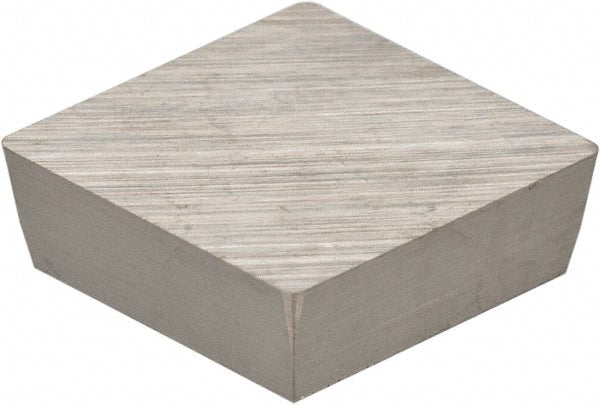

S - Square 3/8" IC Carbide Insert, Grade K68 - Kennametal 1182921
MFR# 1182921ISO/ANSI# SPG090304Series KENDEX
$22.80List $27.84
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeS - Square
GradeK68
MaterialCarbide
Description
The Kennametal 1182921 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeSPG321
Ansi size code321
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle90
Industry standard numberSPG321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialCarbide
Insert shapeS - Square
Insert size code321
Insert styleSPG
Insert thickness in1/8
Iso insert codeSPG090304
Iso size code090304
Length range0.3000 - 0.4000
Manufacturers catalog number1182921
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
