Kennametal

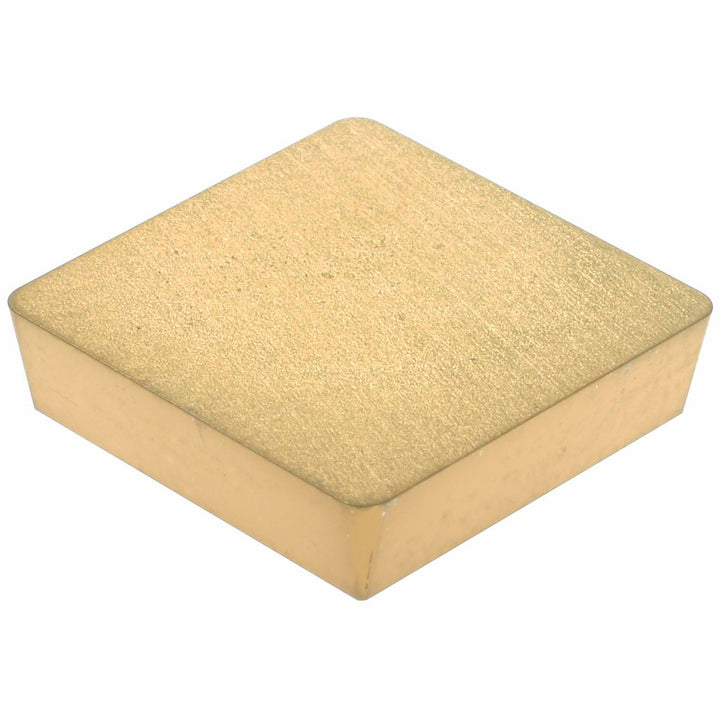

S - Square 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1182963
MFR# 1182963ISO/ANSI# SPG120308Series KENDEX
$29.94List $36.55
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeS - Square
GradeKC850
MaterialCarbide
CoatingTiC
Description
The Kennametal 1182963 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.
Specifications
Ansi insert codeSPG422
Ansi size code422
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle90
Industry standard numberSPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCarbide
Insert shapeS - Square
Insert size code422
Insert styleSPG
Insert thickness in1/8
Iso insert codeSPG120308
Iso size code120308
Length range0.5000 - 0.6000
Manufacturers catalog number1182963
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
