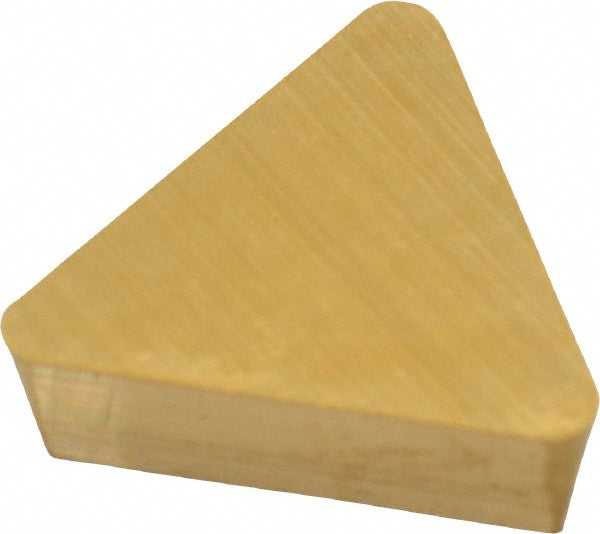

Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183064

Kennametal

Triangle 1/4" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183064

MFR# 1183064ISO/ANSI# TPG222Series KENDEX

$24.33List $29.70 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1183064 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPG222
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeTriangle
Insert size code222
Insert styleTPG
Insert thickness in1/8
Length range0.4000 - 0.5000
Manufacturers catalog number1183064
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4331in
Wiper edgeNo
