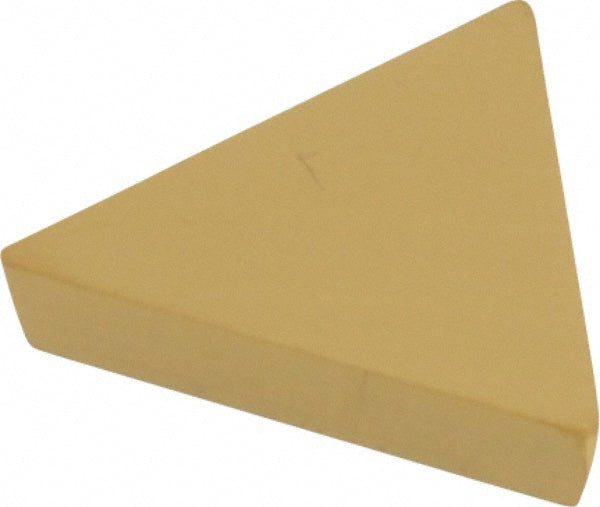

Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183067

Kennametal

Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183067

MFR# 1183067ISO/ANSI# TPG321Series KENDEX

$27.73List $33.85 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1183067 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPG321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Length range0.6000 - 0.6500
Manufacturers catalog number1183067
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6495in
Wiper edgeNo
