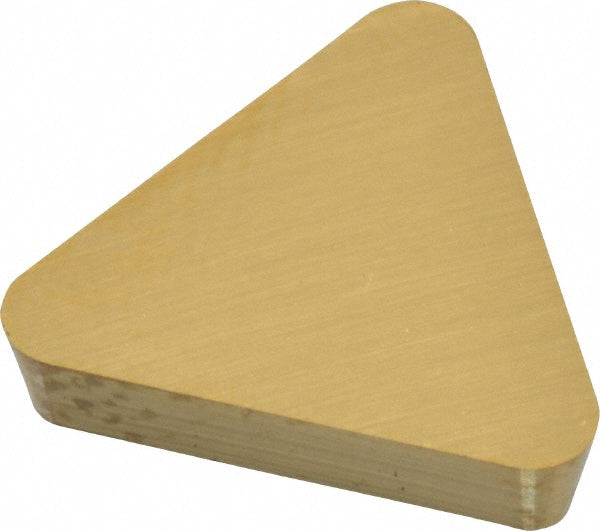

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183070

Kennametal

T - Triangle 3/8" IC Carbide Insert, Grade KC730, TiN - Kennametal 1183070

MFR# 1183070ISO/ANSI# TPG160316Series KENDEX

$27.73List $33.85 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKC730
MaterialCarbide
CoatingTiN

Description

The Kennametal 1183070 is a carbide indexable insert, grade KC730, TiN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTPG324
Ansi size code324
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/16
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Included angle60
Industry standard numberTPG324
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6495
Insert materialCarbide
Insert shapeT - Triangle
Insert size code324
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG160316
Iso size code160316
Length range0.6000 - 0.6500
Manufacturers catalog number1183070
Manufacturer gradeKC730
Material gradeC2; C3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.6495
Wiper edgeNo
