Kennametal

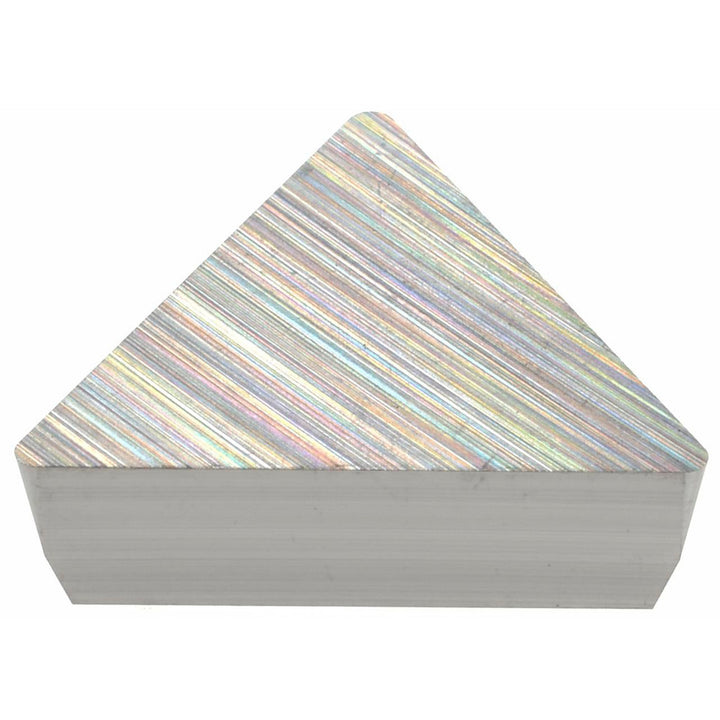

T - Triangle 1/4" IC Carbide Insert, Grade K313 - Kennametal 1183203
MFR# 1183203ISO/ANSI# TPG110304Series KENDEX
$20.50List $25.02
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeK313
MaterialCarbide
Description
The Kennametal 1183203 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeTPG221
Ansi size code221
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle60
Industry standard numberTPG221
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4331
Insert materialCarbide
Insert shapeT - Triangle
Insert size code221
Insert styleTPG
Insert thickness in1/8
Iso insert codeTPG110304
Iso size code110304
Length range0.4000 - 0.5000
Manufacturers catalog number1183203
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.4331
Wiper edgeNo
