Kennametal

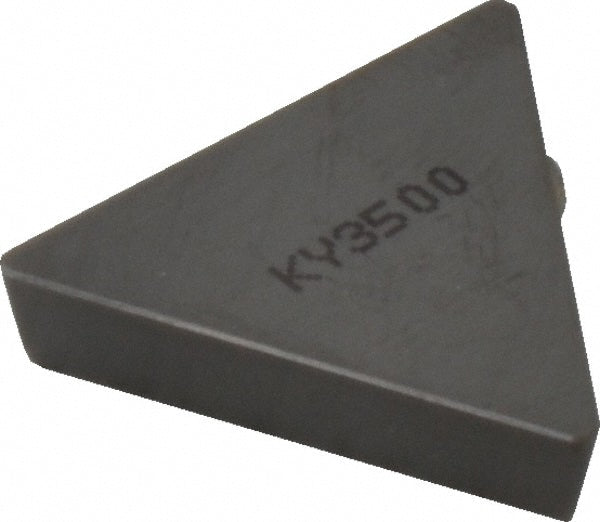

TPGN220408T02020 Ceramic Insert, Grade KY3500 - Kennametal 1183239
MFR# 1183239ISO/ANSI# TPGN220408T02020Cat# TPGN220408T02020Series TPGN
$46.05List $55.22
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKY3500
MaterialCeramic
Description
The Kennametal 1183239 is a TPGN220408T02020 ceramic indexable insert, grade KY3500. Suited for cast iron.
Specifications
Ansi codeTPG432T0820
Chip breakerFlat Top
Coating processUncoated
Corner radius in1/32
Cutting edge styleT-Land
Included angle degree60
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.5100
Insert handNeutral
Insert holding methodScrew
Insert materialCeramic
Insert shapeTriangle
Insert size4
Insert size code432
Insert styleTPGN
Iso codeTPGN220408T02020
Length0.8661
Length range0.7000 to 0.9000
Manufacturers catalog numberTPGN220408T02020
Manufacturer gradeKY3500
Material applicationCast Iron
Material gradeMicrograin
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width in1/2
