Kennametal

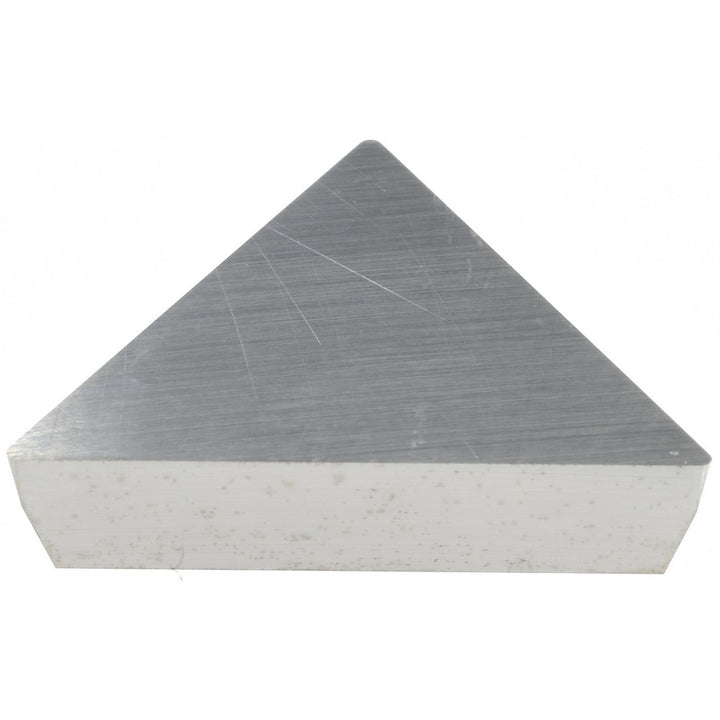

T - Triangle 1/2" IC Carbide Insert, Grade K68 - Kennametal 1183264
MFR# 1183264ISO/ANSI# TPG220404Series KENDEX
$31.02List $37.86
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeK68
MaterialCarbide
Description
The Kennametal 1183264 is a carbide indexable insert, grade K68. Suited for non-ferrous metal, superalloys & titanium.
Specifications
Ansi insert codeTPG431
Ansi size code431
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle60
Industry standard numberTPG431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTPG
Insert thickness in3/16
Iso insert codeTPG220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturers catalog number1183264
Manufacturer gradeK68
Material gradeC3
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
