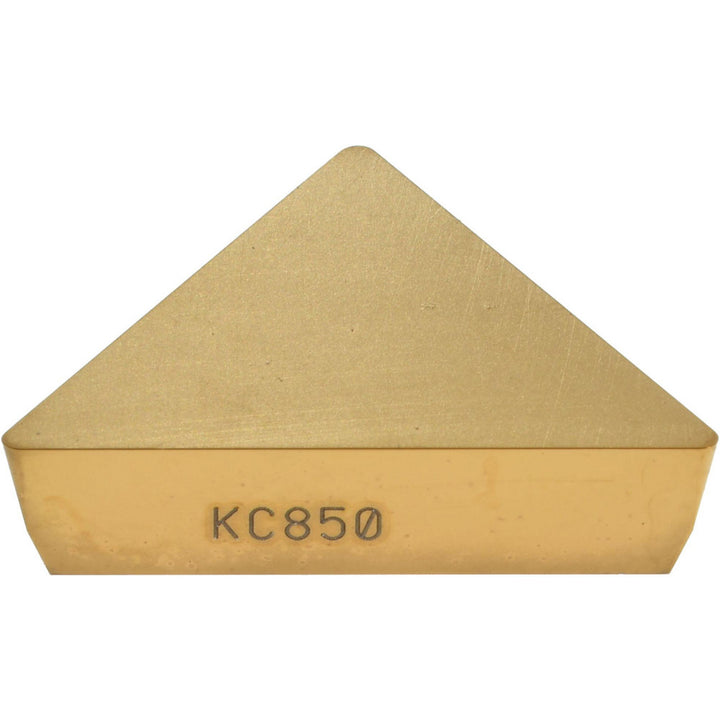

T - Triangle 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1183323

Kennametal

T - Triangle 5/8" IC Carbide Insert, Grade KC850, TiC - Kennametal 1183323

MFR# 1183323ISO/ANSI# TPG270608Series KENDEX

$65.55List $80.02 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1183323 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeTPG542
Ansi size code542
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle60
Industry standard numberTPG542
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp
Insert length1.0820
Insert materialCarbide
Insert shapeT - Triangle
Insert size code542
Insert styleTPG
Insert thickness in1/4
Iso insert codeTPG270608
Iso size code270608
Length range0.7000 - 10.0000
Manufacturers catalog number1183323
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width1.0820
Wiper edgeNo
