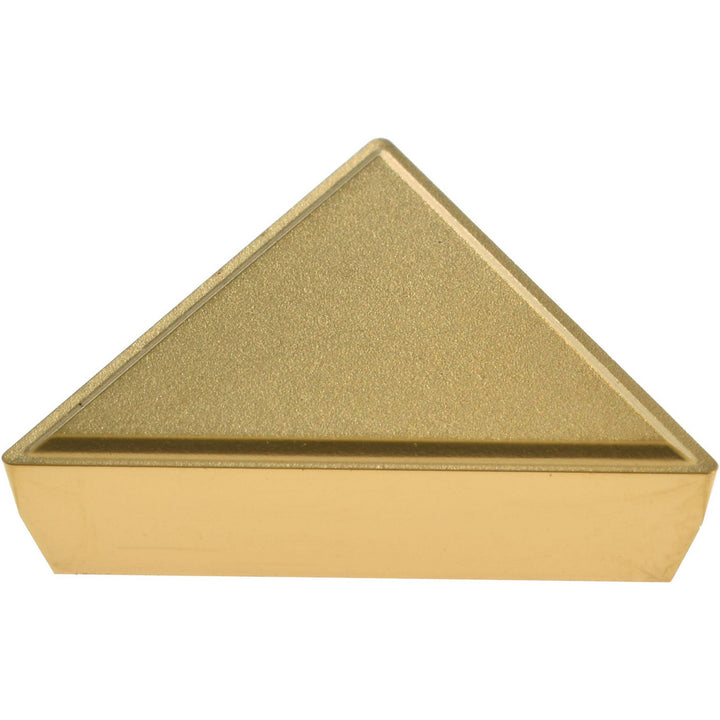

T - Triangle 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1183331

Kennametal

T - Triangle 1/2" IC Carbide Insert, Grade KC850, TiC - Kennametal 1183331

MFR# 1183331ISO/ANSI# TPGF220404Series KENDEX

$35.53List $43.36 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKC850
MaterialCarbide
CoatingTiC

Description

The Kennametal 1183331 is a carbide indexable insert, grade KC850, TiC coated. Suited for steel, stainless steel.

Specifications

Ansi insert codeTPGF431
Ansi size code431
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeP
Coating finishTiC
Coating processCVD
Corner radius in1/64
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness to High Toughness; Special, Super Alloys (S) - Mod
Included angle60
Industry standard numberTPGF431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTPGF
Insert thickness in3/16
Iso insert codeTPGF220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturers catalog number1183331
Manufacturer gradeKC850
Material gradeC5; C6
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle5
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.8661
Wiper edgeNo
