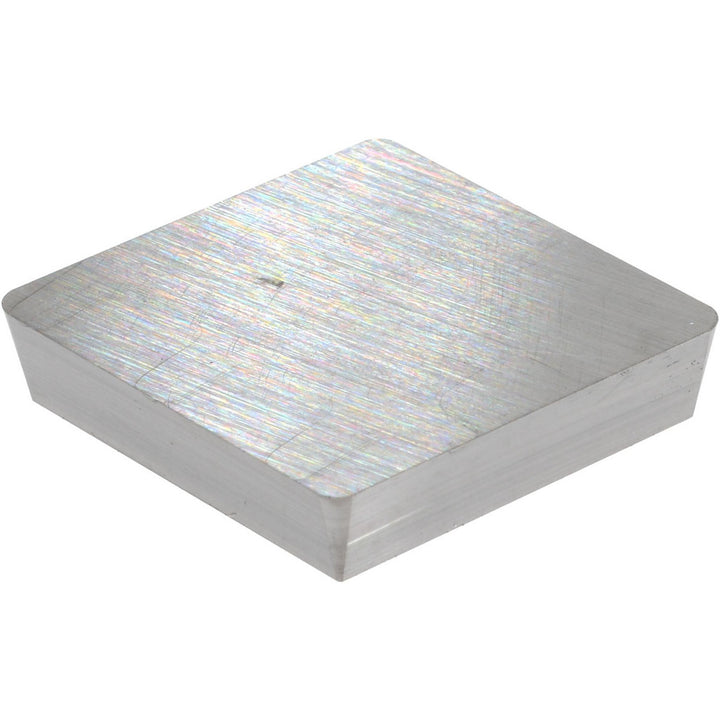

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K313 - Kennametal 1183422

Kennametal

C - Diamond (Rhombic) 80-Deg 1/2" IC Carbide Insert, Grade K313 - Kennametal 1183422

MFR# 1183422ISO/ANSI# CPG120308Series KENDEX

$26.86List $32.79 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeK313
MaterialCarbide

Description

The Kennametal 1183422 is a carbide indexable insert, grade K313. Suited for non-ferrous metal, superalloys & titanium.

Specifications

Ansi insert codeCPG422
Ansi size code422
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughne
Included angle80
Industry standard numberCPG422
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code422
Insert styleCPG
Insert thickness in1/8
Iso insert codeCPG120308
Iso size code120308
Length range0.5000 - 0.6000
Manufacturers catalog number1183422
Manufacturer gradeK313
Material gradeC3; C4
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal; Superalloys & Titanium
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
