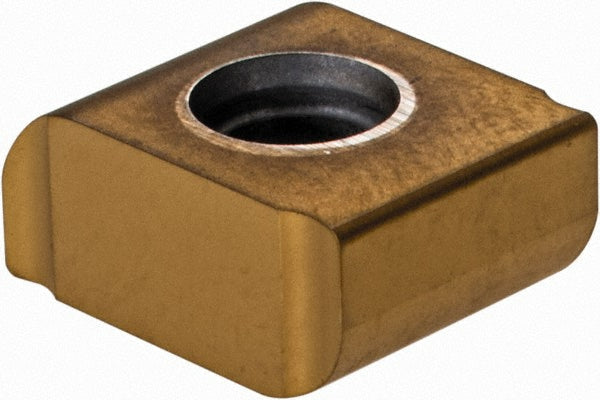

LNEU1255R32 Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 1184094

MFR# 1184094ISO/ANSI# LNEU1255R32Cat# LNEU1255R32Series LNEU

$46.43List $56.67 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 1184094 is a LNEU1255R32 solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeLNEU1255R32
Chip breakerCommon
Coating finishTiAlN
Coating processPVD
Corner radius0.1260
Cutter series compatibilityLN
Cutting edge styleHoned
Hole diameter0.1732
Included angle degree90
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size12
Insert size code1255
Insert styleLNEU
Iso codeLNEU1255R32
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberLNEU1255R32
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2165
Thickness range0.2000 to 0.2200
Width in3/8
