Kennametal

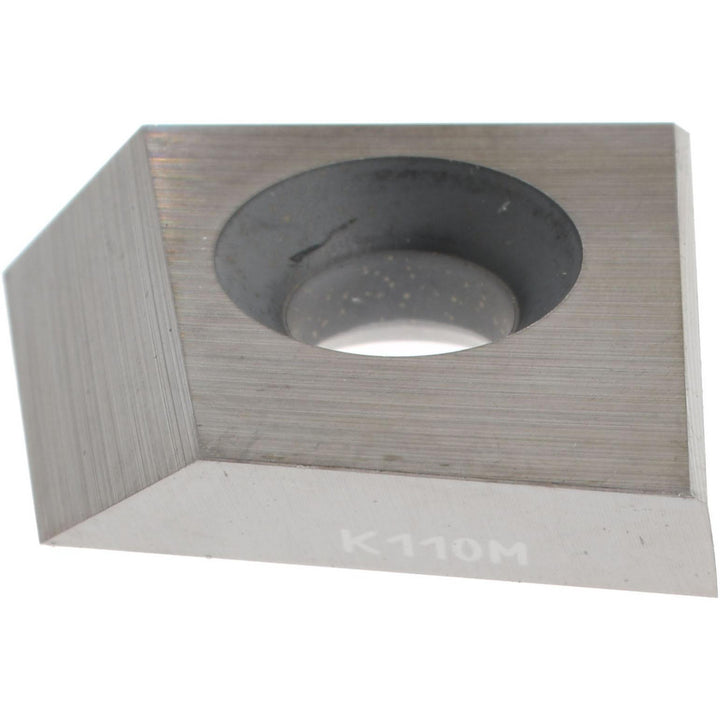

4.21508R666 Solid Carbide Insert, Grade K110M - Kennametal 1191265
MFR# 1191265ISO/ANSI# 4.21508R666Cat# 4.21508R666Series 4.21
$43.28List $52.83
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeK110M
MaterialSolid Carbide
Description
The Kennametal 1191265 is a 4.21508R666 solid carbide indexable insert, grade K110M. Suited for cast iron, non-ferrous metal.
Specifications
Coating processUncoated
Hole diameter0.1969
Inscribed circle0.5906
Inscribed circle range0.5100 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size66
Insert size code666
Insert style4.21508
Iso code4.21508R666
Length0.4134
Length range0.4000 to 0.4500
Manufacturers catalog number4.21508R666
Manufacturer gradeK110M
Material applicationCast Iron; Non-Ferrous Metal
Material gradeC2; C3
Primary workpiece materialCast Iron; Non-Ferrous Metal
RakePositive
Single or double sided insertSingle
Thickness0.1970
Thickness range0.1850 to 0.2000
