Kennametal

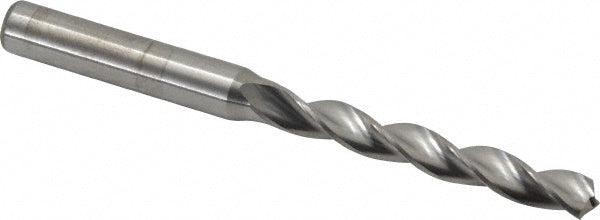

0.2559" Solid Carbide Drill Bit, 130° point - Kennametal 1191430
MFR# 1191430
$166.31List $213.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Kennametal 1191430 is a 0.2559" Solid Carbide drill bit, 130° point. Suited for cast iron, aluminum & non-ferrous, high-temp alloy.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance0.006 to 0.021 mm
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size0.2559
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Drill point length (mm)1.60
Flute length2.0866
Flute typeRegular Spiral
Material gradeK10
Maximum drilling depth1.6929
Number of flutes3
Overall length3.5827
Point typeStandard
Primary workpiece materialCast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Specification numberDIN 6537L
Spiral typeRegular
Web configurationTapered
Web thinningWeb-Thinned
