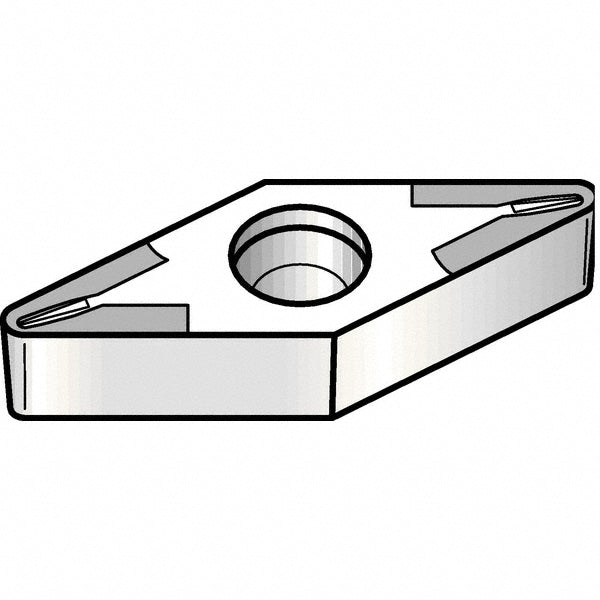

VBMT16040411 Cermet Insert, Grade KT325 - Kennametal 1198162

Kennametal

VBMT16040411 Cermet Insert, Grade KT325 - Kennametal 1198162

MFR# 1198162ISO/ANSI# VBMT33111Series Screw-On

$35.91List $43.06 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeKT325
MaterialCermet

Description

The Kennametal 1198162 is a VBMT16040411 cermet indexable insert, grade KT325. Suited for steel, cast iron.

Specifications

Chip breaker11
Clearance codeB
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35degree
Industry standard numberVBMT33111
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCermet
Insert shapeDiamond 35
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT16040411
Length range0.7000 - 10.0000
Manufacturers catalog number1198162
Manufacturer gradeKT325
Material gradeC3; C4; C7; C8
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle5
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
