Kennametal

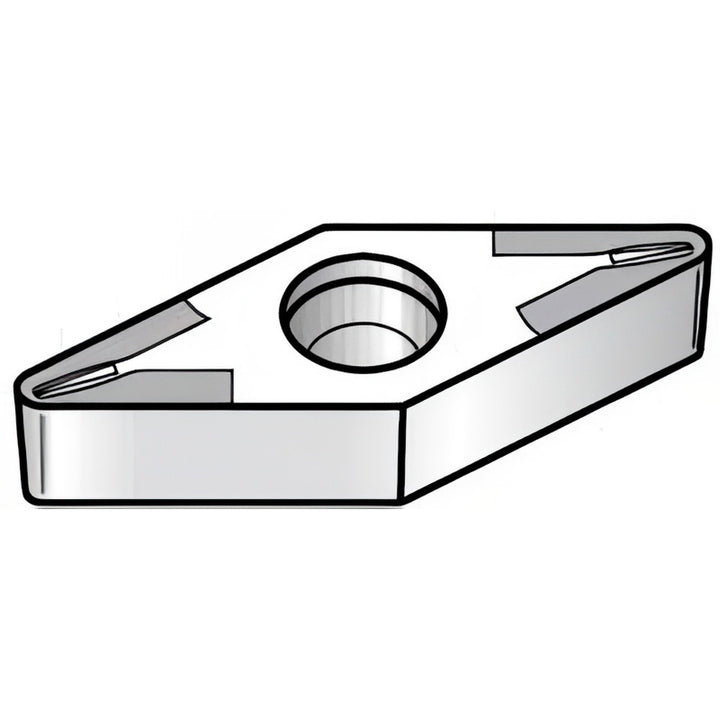

V - Diamond (Rhombic) 35-Deg 3/8" IC Cermet Insert, Grade KT325 - Kennametal 1198163
MFR# 1198163ISO/ANSI# VBMT160408Series Screw-On
$35.91List $43.06
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT325
MaterialCermet
Description
The Kennametal 1198163 is a cermet indexable insert, grade KT325. Suited for steel, cast iron.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breaker11
Chip breaker operationFinishing
Clearance codeB
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle35
Industry standard numberVBMT33211
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number1198163
Manufacturer gradeKT325
Material gradeC3; C4; C7; C8
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
