Kennametal

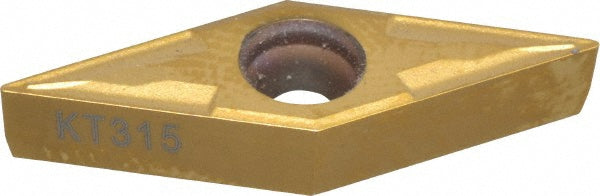

V - Diamond (Rhombic) 35-Deg 1/4" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198180
MFR# 1198180ISO/ANSI# VBMT110302Series Screw-On
$33.32List $39.96
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeV - Diamond (Rhombic) 35-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1198180 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeVBMT2205
Ansi size code2205
Chip breaker11
Chip breaker operationFinishing
Clearance codeB
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1102
Included angle35
Industry standard numberVBMT220511
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.8718
Insert materialCermet
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code2205
Insert styleVBMT
Insert thickness in1/8
Iso insert codeVBMT110302
Iso size code110302
Length range0.7000 - 10.0000
Manufacturers catalog number1198180
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
