Kennametal

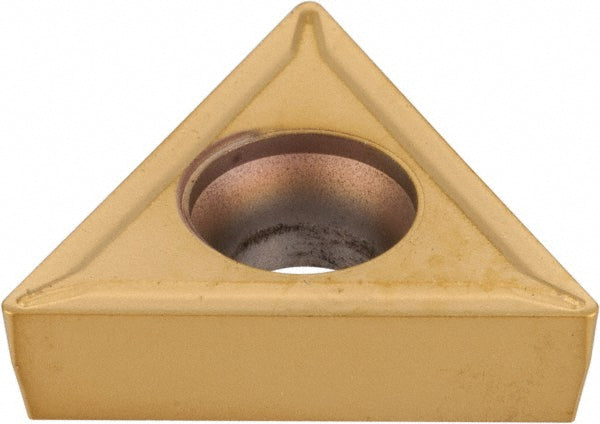

T - Triangle 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198186
MFR# 1198186ISO/ANSI# TCMT16T304Series Screw-On
$31.91List $38.27
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1198186 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeTCMT3251
Ansi size code3251
Chip breaker11
Chip breaker operationFinishing
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle60
Industry standard numberTCMT325111
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6496
Insert materialCermet
Insert shapeT - Triangle
Insert size code3251
Insert styleTCMT
Insert thickness in5/32
Iso insert codeTCMT16T304
Iso size code16T304
Length range0.6000 - 0.6500
Manufacturers catalog number1198186
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6496
Wiper edgeNo
