Kennametal

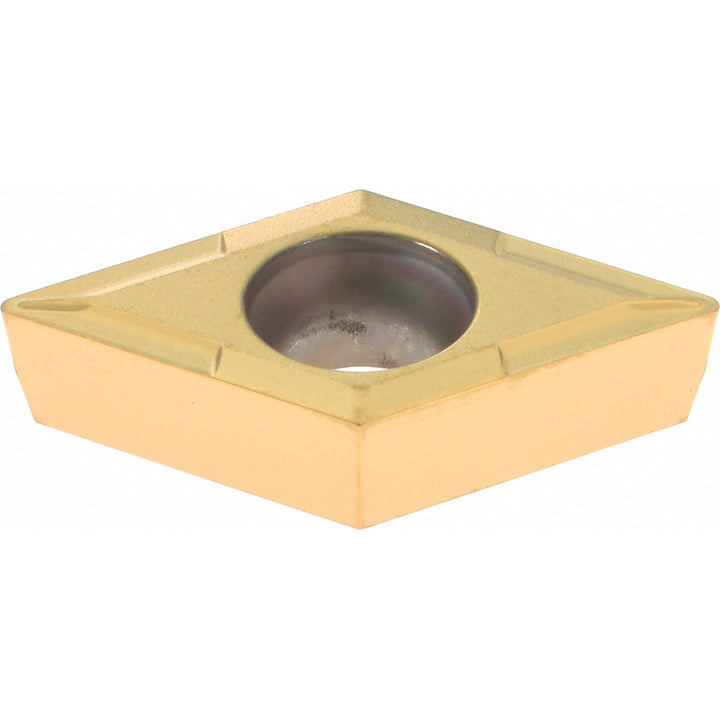

D - Diamond (Rhombic) 55-Deg 3/8" IC Cermet Insert, Grade KT315, TiN - Kennametal 1198192
MFR# 1198192ISO/ANSI# DCMT11T304Series Screw-On
$30.80List $36.94
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKT315
MaterialCermet
CoatingTiN
Description
The Kennametal 1198192 is a cermet indexable insert, grade KT315, TiN coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeDCMT3251
Ansi size code3251
Chip breaker11
Chip breaker operationFinishing
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance; Cast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle55
Industry standard numberDCMT325111
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCermet
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code3251
Insert styleDCMT
Insert thickness in5/32
Iso insert codeDCMT11T304
Iso size code11T304
Length range0.7000 - 10.0000
Manufacturers catalog number1198192
Manufacturer gradeKT315
Material gradeC3; C7
Maximum depth of cut0.0492
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle5
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
