Kennametal
3/8" Carbide Drill Bit, 130° point - Kennametal 1201039
MFR# 1201039Series K411
$209.68List $268.93
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description

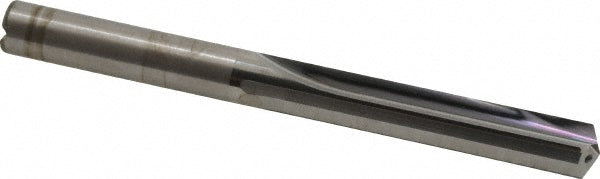

The Kennametal 1201039 is a 3/8" Carbide drill bit, 130° point. Suited for cast iron, non-ferrous metals. Series K411.
Specifications
Coolant hole shapeRound
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0000 to +0.0004 in
Drill bit size in3/8
Drill bit typeStraight-Flute
Drill point angle130
Drill point length0.0880
Flute length2.3800
Maximum drilling depth1.9200
Number of flutes2
Overall length4.0550
Point typeSplit
Primary workpiece materialCast Iron; Non-Ferrous Metals
Secondary workpiece materialCast Iron; Non-Ferrous Metals
Shank length1.5950
Specification numberDIN 6537L
Tool materialCarbide
Web thinningWeb-Thinned
