Kennametal

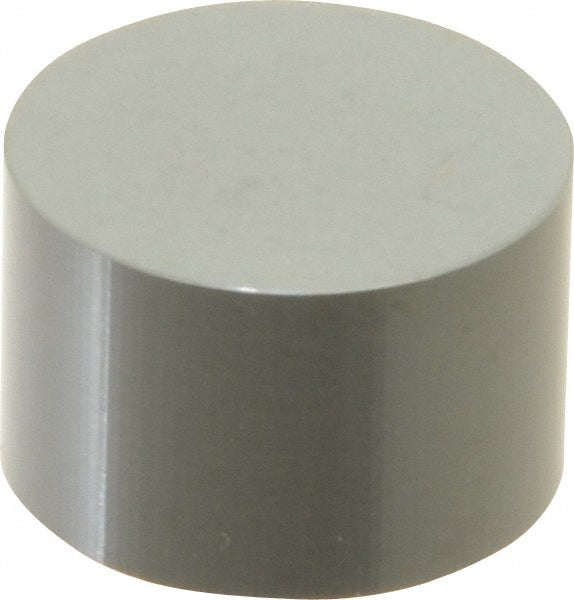

R - Round 1/2" IC Whiskered Ceramic Insert, Grade KY4300 - Kennametal 1203627
MFR# 1203627ISO/ANSI# RNG120700Series KENDEX
$31.87List $38.21
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeR - Round
GradeKY4300
MaterialWhiskered Ceramic
Description
The Kennametal 1203627 is a whiskered ceramic indexable insert, grade KY4300. Suited for superalloys & titanium, hard material.
Specifications
Ansi insert codeRNG45
Ansi size code45
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/4
Cutting edge styleT-Land
Full radiusYes
Included angle360
Industry standard numberRNG45T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialWhiskered Ceramic
Insert shapeR - Round
Insert size code45
Insert styleRNG
Insert thickness in5/16
Iso insert codeRNG120700
Iso size code120700
Length range0.5000 - 0.6000
Manufacturers catalog number1203627
Manufacturer gradeKY4300
Material gradeAlumina SiC
Maximum depth of cut0.0500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSuperalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
