Kennametal

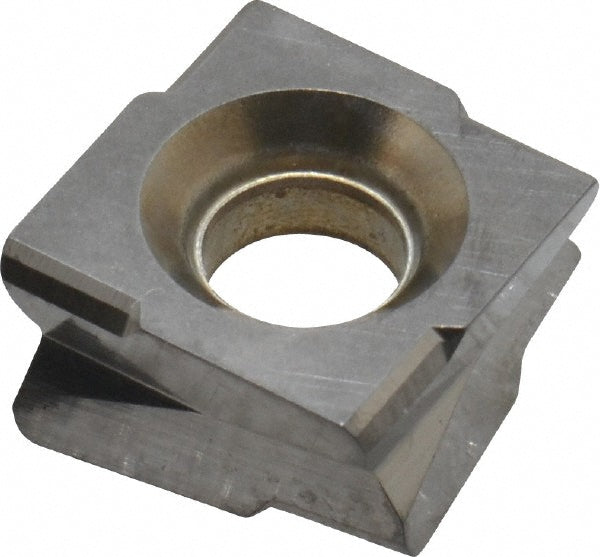

4.81201R631 Solid Carbide Insert, Grade K125M - Kennametal 1223429
MFR# 1223429ISO/ANSI# 4.81201R631Cat# 4.81201R631Series 4.81201
$46.62List $56.91
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeK125M
MaterialSolid Carbide
Description
The Kennametal 1223429 is a 4.81201R631 solid carbide indexable insert, grade K125M. Suited for cast iron, non-ferrous metal.
Specifications
Coating processUncoated
Hole diameter0.1969
Inscribed circle0.5906
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size63
Insert size code631
Insert style4.81201
Iso code4.81201R631
Length0.2362
Length range0.0000 to 0.3200
Manufacturers catalog number4.81201R631
Manufacturer gradeK125M
Material applicationCast Iron; Non-Ferrous Metal
Material gradeC5
Primary workpiece materialCast Iron; Non-Ferrous Metal
Single or double sided insertSingle
Thickness0.2170
Thickness range0.2000 to 0.2200
