Kennametal

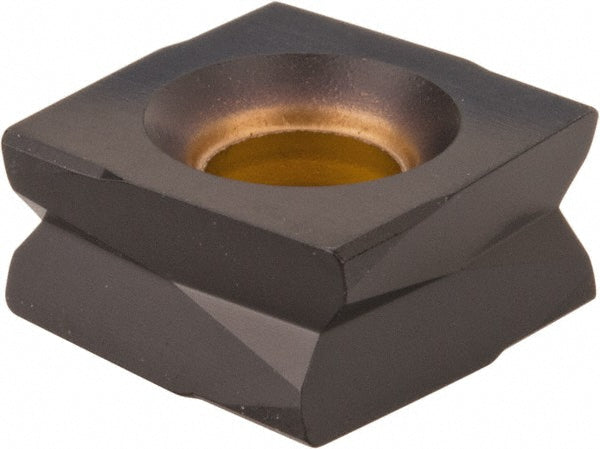

SPHX1205PCERGPB Solid Carbide Insert, Grade KCK15, TiN - Kennametal 1223594
MFR# 1223594ISO/ANSI# SPHX1205PCERGPBCat# SPHX1205PCERGPBSeries SPHX
$40.82List $49.82
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeSquare
GradeKCK15
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 1223594 is a SPHX1205PCERGPB solid carbide indexable insert, grade KCK15, TiN coated. Suited for cast iron.
Specifications
Ansi codeSPHX1205PCERGPB
Chip breakerGP
Coating finishTiN
Coating processMTCVD
Cutter series compatibilityFix-Perfect
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree90
Inscribed circle0.2165
Inscribed circle range0.0000 to 0.2500
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size12
Insert size code1205
Insert styleSPHX
Iso codeSPHX1205PCERGPB
Length0.2587
Length range0.0000 to 0.3200
Manufacturers catalog numberSPHX1205PCERGPB
Manufacturer gradeKCK15
Material applicationCast Iron
Material gradeC1
Maximum depth of cut0.2130
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron
RakePositive
Rake angle5
Relief angle11.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.2170
Thickness range0.2000 to 0.2200
