Kennametal

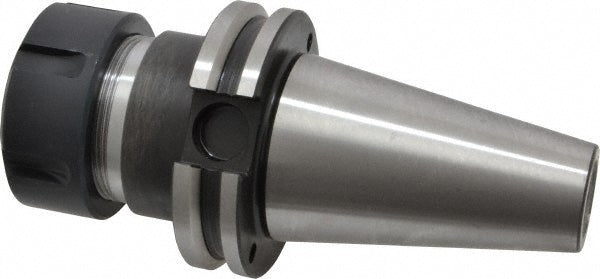

CAT40 Collet Chuck - Kennametal 1261619
MFR# 1261619
$182.80List $229.46
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Kennametal 1261619 is a CAT40 Collet Chuck.
Specifications
Actuator typeWrench
Balanced to rpm12000
Collet nut diameter1.9690
Collet seriesER32
Collet systemER
Coolant typeThrough-Spindle & DIN Flange
Maximum collet capacity0.7874
Minimum collet capacity0.0800
Nose diameter1.9700
Overall length5.437
Projection in2-3/4
Shank typeTaper
Taper sizeCAT40
Through coolantYes
